Description
When a direct oil heater is switched on the air compressor draws in air, pressurises it and passes it through an air line to the burner head nozzle.
The air flow causes fuel to be drawn from the tank. The fuel and air mix is then sprayed into the combustion chamber. The mixture is automatically ignited by the spark plug and a high temperature heat stream is generated in the combustion chamber.
Air is drawn into the unit by a fan and is pushed around the cool chamber situated between the combustion chamber and outer casing. This fast flowing air sucks the heat stream out of the combustion chamber, providing the required heat. The heat output is governed by the compressor - the higher the air pressure, the hotter the flame.
High air displacement

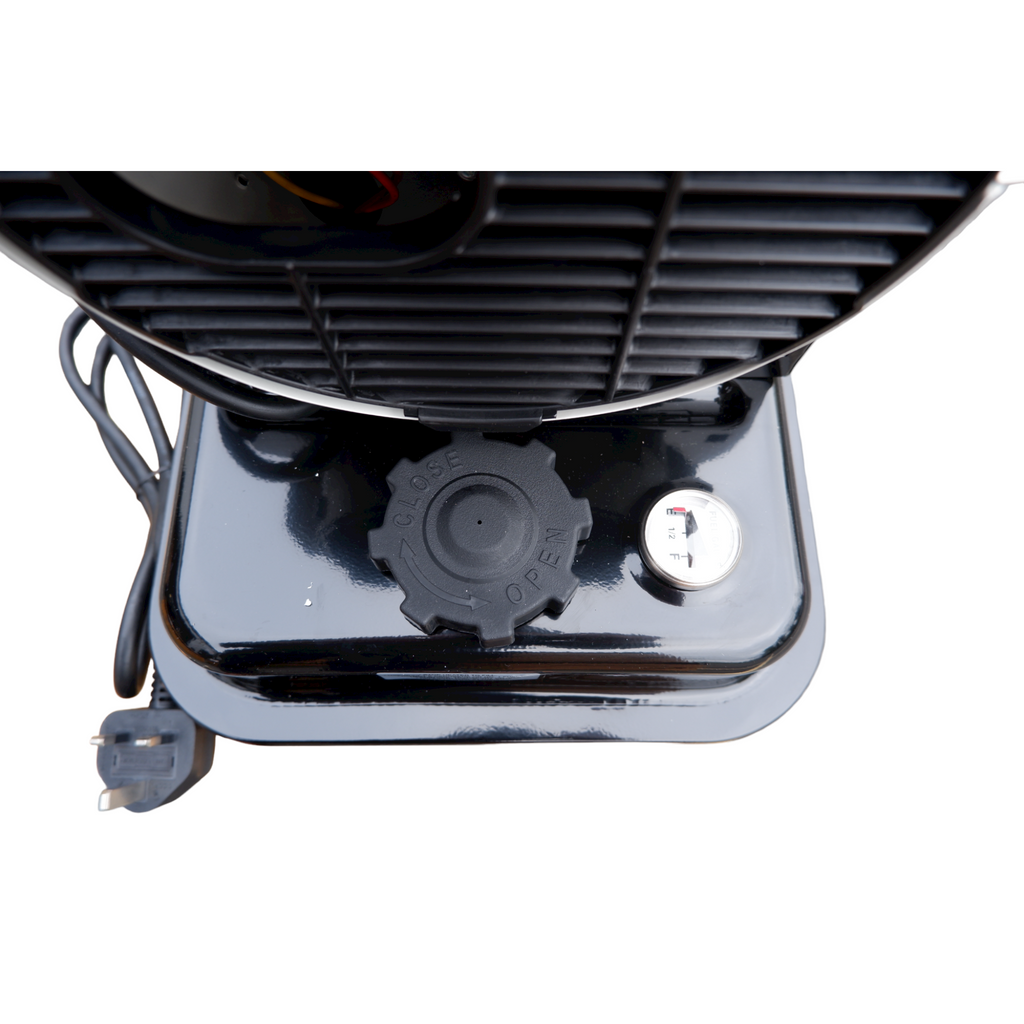

Integral fuel gauge
Thermal protection for motor
Error indicator light
Electronic flame control
Durable steel construction
Hard wearing
Fuel Type: Diesel/Kerosene/Paraffin
Powder coated housing remains cool to the touch

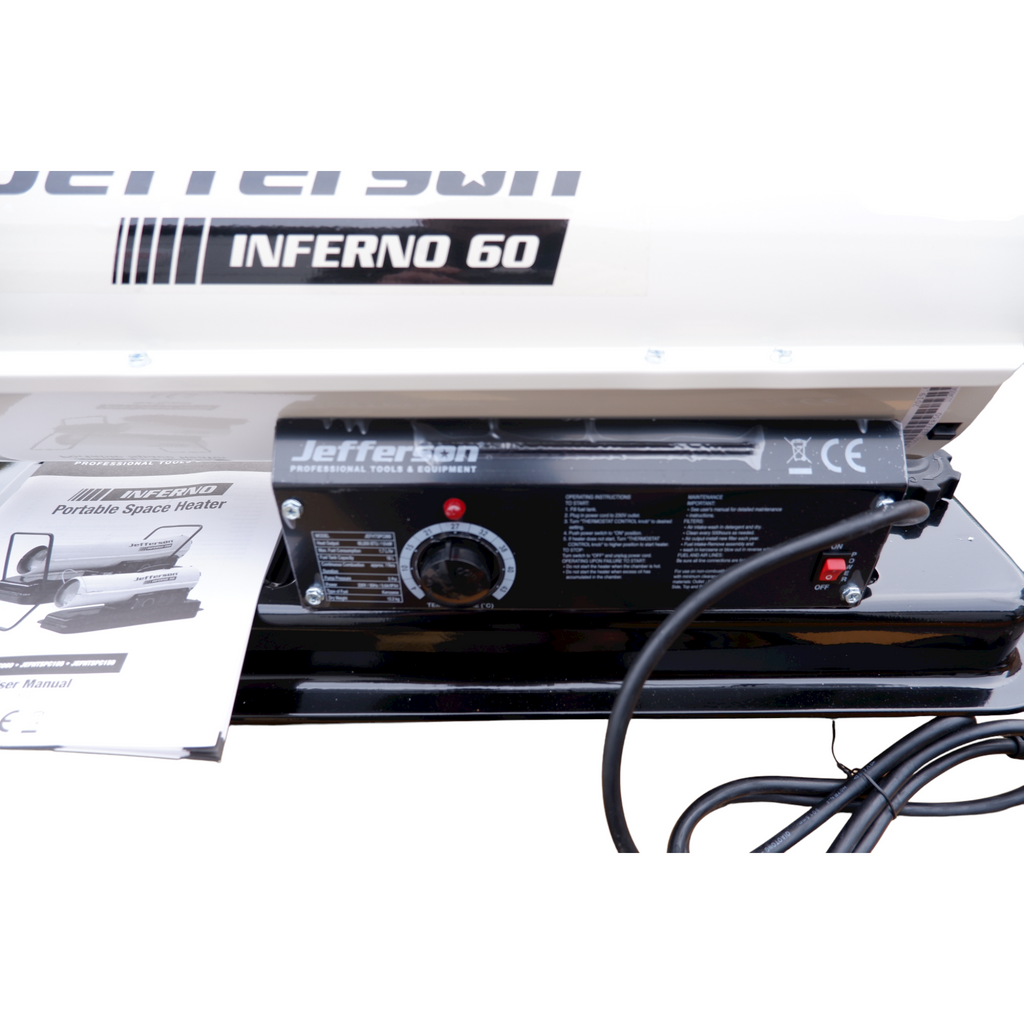

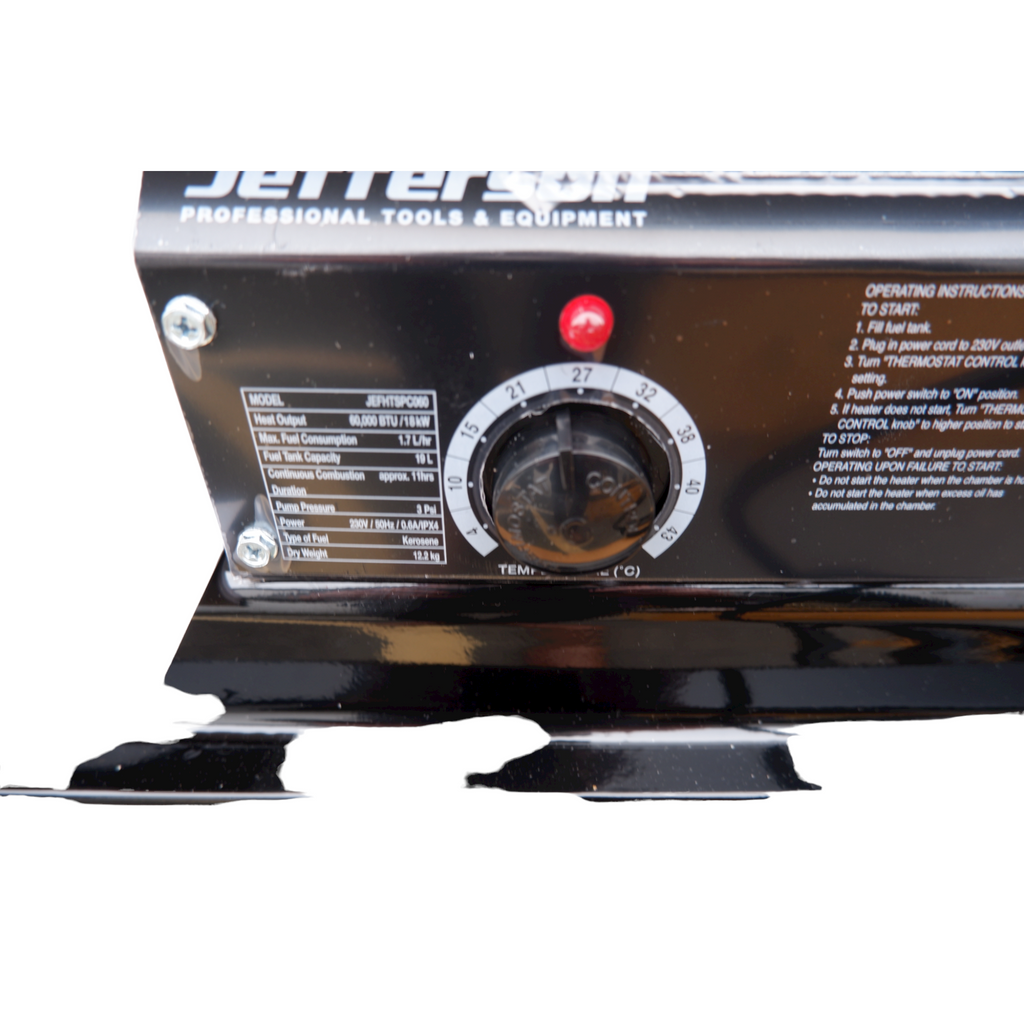

Adjustable thermostat to control heat output
Stainless steel combustion chamber

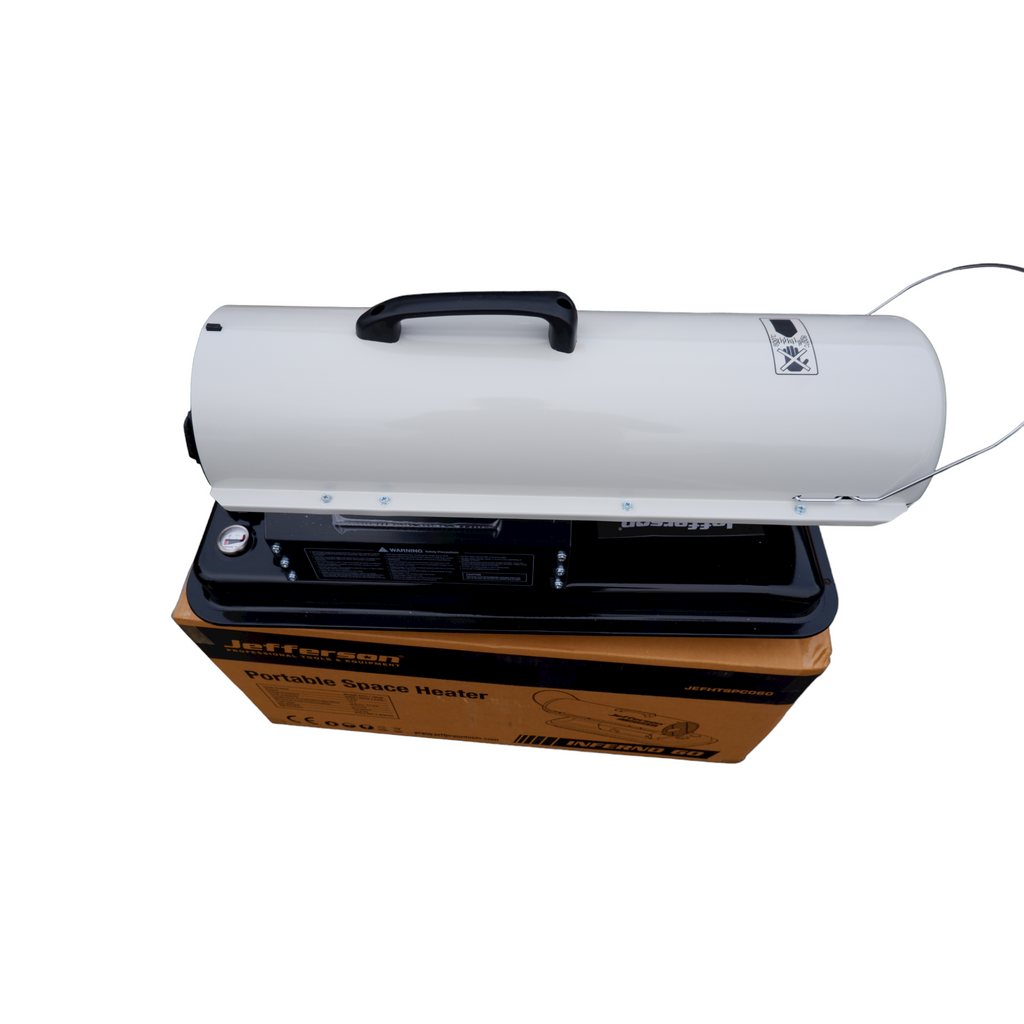

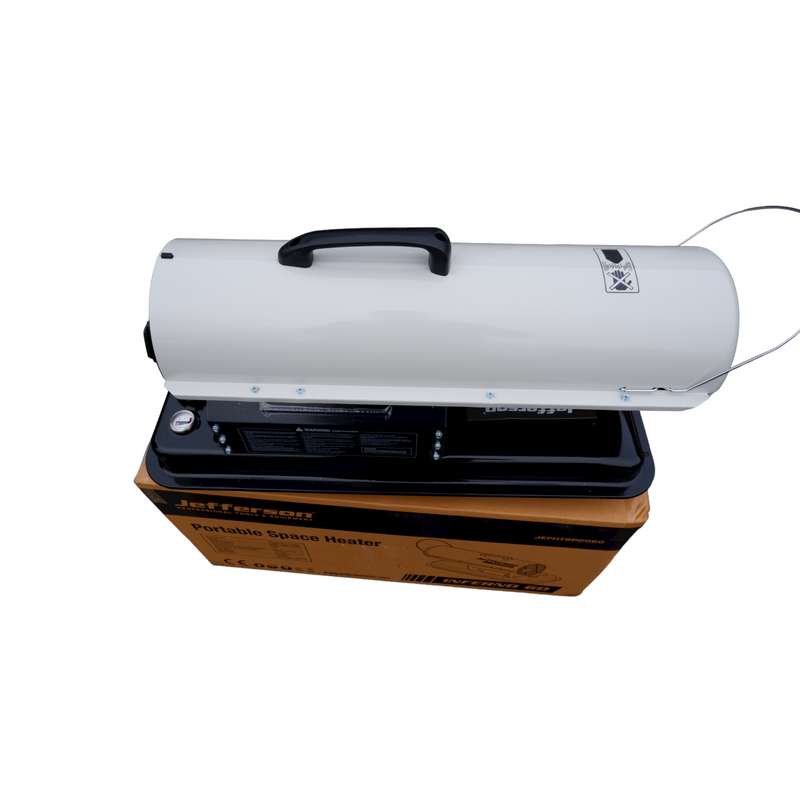

Fitted with a carry handle for ease of mobility
SKU
JEFHTSPC060
Voltage
230V
Thermal Power
60,000Btu / 18kW
Fuel Tank Capacity
19L
Fuel Type
Diesel
Max. Fuel Consumption
1.7L/hr
Endurance
11 hours

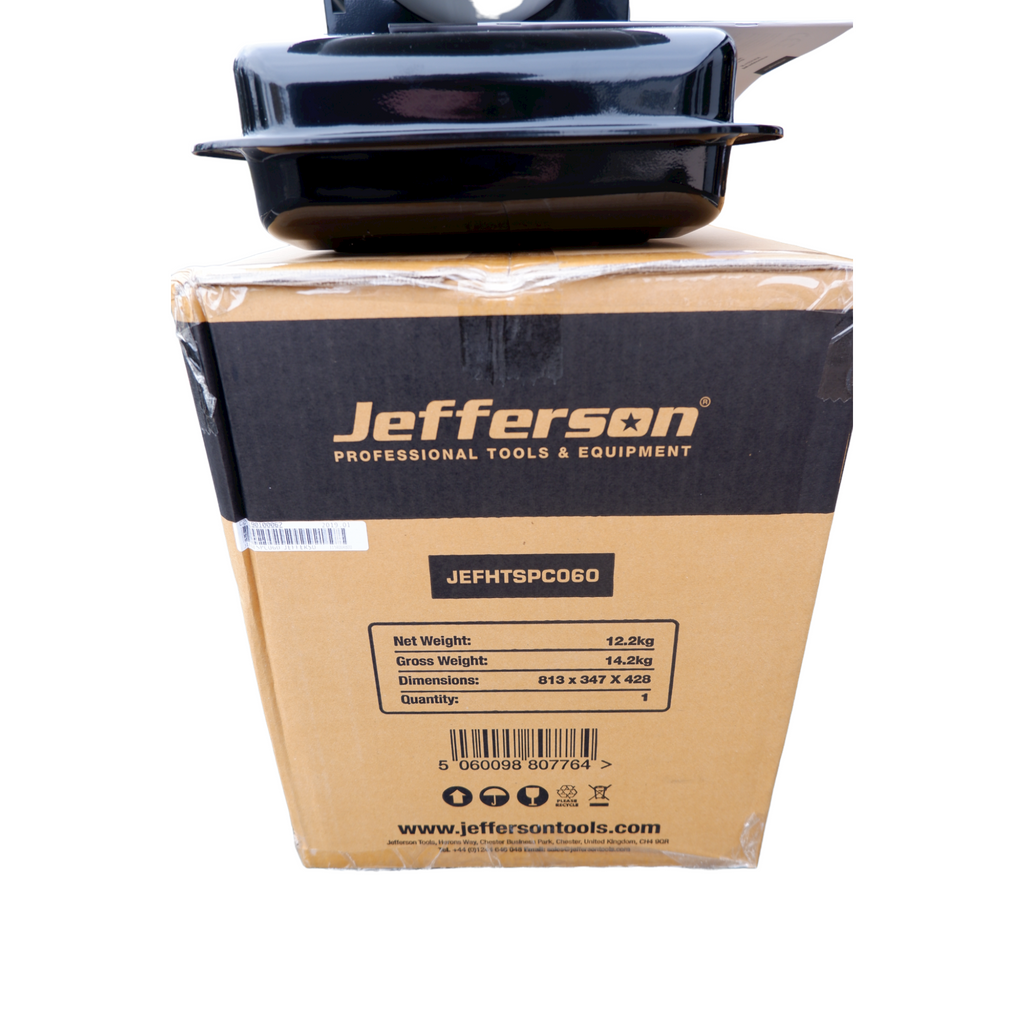

Dry Weight
12.2kg
Gross Weight
14.2 kgs
